SOLAR POWERED LIGHTING SOLUTIONS

Point Lighting manufactures solar powered products and systems for heliports, wind cones & obstruction lighting. Choose from our recommended designs or link to our products by application.

Point Lighting’s manufacturing plant in Bloomfield, CT USA produces almost 100% of the electrical power from a solar power system connected to the utility company.

PORTABLE OR FIXED SOLAR POWERED HELIPORT PERIMETER LIGHT

Wireless operation year round almost anywhere in the world

More Information

Products for Solar Powered Heliports, Vertiports & Helidecks:

Products for Solar Powered Aviation Obstruction Lighting:

IMPORTANT THINGS TO CONSIDER ABOUT
SOLAR AVIATION LIGHTING



Days of Autonomy:

This is the number of days where no power generation is possible due to clouds or rain despite the fact that you continue to consume energy. Please note that even on days of complete clouds, a solar powered lighting system still gets some battery charging during daylight hours. Our solar power calculation is based on published annual temperature and solar radiation data. The battery is designed for solar power systems to withstand deep discharge cycling.

The solar power controller is solid-state, encapsulated and mounted in an outdoor NEMA 4X enclosure. The controller does not, and should not, have a low battery cutoff as the lights must stay ON despite marginal conditions. We also add a 30% safety margin. The manufacturer of the lighting should be specified to be an FAA certified manufacturing facility. Beware of competitors’ quotes by distributors and others who simply buy lights and separate solar power materials. They may use lights that do not accurately state the power consumption and do not allow sufficient safety factors. You want these lights to work during the darkest month of the year.

To learn more information about solar aviation lighting, download a Sample Point Lighting Solar Calculation Report

SOLAR POWERED HELIPORT LIGHTING

Point Lighting supplies solar powered heliport lighting systems that meet the same standards as a hard-wired AC powered system. Competitors’ lights with little onboard solar arrays are too dim and just don’t work consistently. Lights with little antennas end up with some lights on and some off. We prefer to use one radio controller with all the lights connected and powered by one central solar array and controller. This permits multiple timed aircraft operations per night while maintaining the capacity.

Need a complete solar heliport lighting system?

The HSOL system is detailed below in the “Designed Solutions.

Need individual solar powered heliport lights?

We offer PEL-SOL portable individual lights that can operate year-round all night without switching.

Need a solar powered heliport surface floodlight?

We have a PSF version switched via wireless key fob and one that operates all night unattended.

Need portable battery powered heliport lights?

We have PBLR portable battery lights boxed in kits for use by emergency services.

Need just a solar powered lighted wind cone?

Our PWC-SOL is a selection of standalone solar internally lighted wind cones.

POINT LIGHTING’S DESIGNED SOLUTIONS
FOR SOLAR HELIPORTS

DESIGNED SOLUTIONS FOR Solar Heliports DOWNLOAD DOWNLOAD
Typical USA Solar Powered Heliport SKETCH 5 SKETCH 5 BILL OF MATERIAL
Typical Transport Canada Solar Heliport SKETCH 2B SKETCH 2 BILL OF MATERIAL

HSOL

POINT LIGHTING’S PACKAGED SOLAR POWERED HELIPORT LIGHTING SYSTEM

More Information

PSF-53062-SOL LED Surface Floodlight

  • LED portable solar powered floodlight
  • Two versions: wireless switching; all night operation
  • Adjustable tilt angle

PEL-57007-SOL LED Perimeter Light

  • LED portable or fixed solar powered runway or heliport lights
  • Operates all night, year round, automatically
  • Economy model

PEL-57005-SOL LED Perimeter Light

  • LED Portable or fixed solar
  • Wireless operation
  • FAA & ICAO Compliant

PHB-37002-M-SOL LED Solar Powered Identification Beacon

  • LED Morse Code “H” flashing beacon
  • Operates all night, year round, automatically

PWC-8061L-B-SOL Solar Powered Wind Cone

  • LED internally lighted
  • Operates all night, year round, automatically

SOLAR POWERED OBSTRUCTION LIGHTING

Point Lighting has decades of experience supplying aviation obstruction lighting systems including controls. Most full systems are not suitable for solar power because of the high load requirements. These non-solar projects include all white beacon systems. Solar obstruction lighting is best suited individual red lights and small red systems such as a tower less than 350-ft tall. Contact Point Lighting for specific projects.

POL-SOL

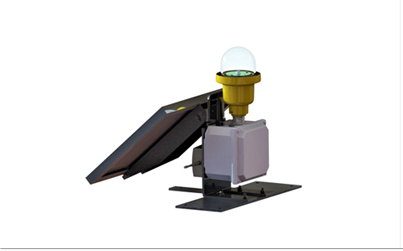

POL-22001 Solar Obstruction Lights

  • Portable or Fixed
  • FAA L-810 (-43H)
  • ICAO Type A

POL-21005 Solar Obstruction Lights

  • Transport Canada
  • ICAO Types A & B
  • Various mounting configurations available

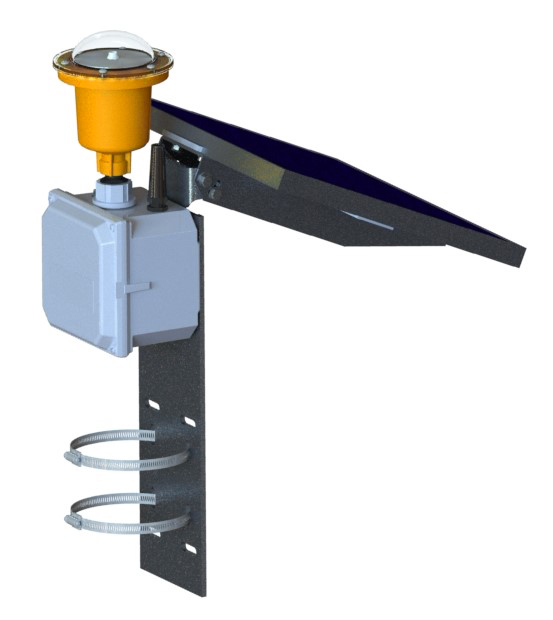

POL-D2-SOL-PM

POL-21006 Solar Obstruction Lights

  • Current FAA L810 (-43J)
  • Operates automatically year round
  • Various mounting configurations available

PFB & POL Mixed Systems

  • Flashing red beacon & side lights
  • FAA L-810 & L-864
  • ICAO low & medium intensity

PFB Solar Powered LED Red Beacons

  • Flashing red beacon
  • FAA L-864
  • ICAO medium intensity Type B

Get In Touch

Point Lighting Corporation personnel will assist customers and their agents in the design of lighting layouts, equipment selection and specifications. In all cases, this represents our interpretation of applicable standards and common practices. No fee is charged for these opinions. Final equipment selection is the responsibility of the end user and to comply with all applicable laws and codes and to ensure proper installation.
