Obstruction
Lights

POL FEATURES

POL-21005 & POL-21006

  • The castings are copper-free (< 0.25%) aluminum
  • The hardware is 316 (A4) stainless steel
  • Extensive mounting options available
  • Variable brightness option available
  • The lens is glass
  • The LED’s are rated for 100,000 hours
  • UL 1598A Marine Vessels tested and listed
  • NVG compatibility
  • Standard with the exclusive Point Lighting Marine Treatment finish that is bonded to the metal and far exceeds the corrosion resistance of the standard FAA approved finish
  • Six (6) years limited warranty subject to Point Lighting “Terms & Conditions of Sale”

POL-21006 LED single obstruction light

  • Safe area LED FAA L-810 (-43J)
  • For prominent structures & towers in the USA
  • Includes alarm monitoring & NVG compatibility

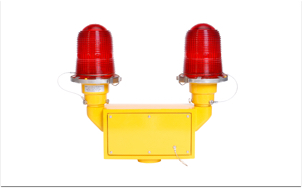

POL-21006 LED double obstruction light

  • Safe area LED FAA L-810 (-43J)
  • For prominent structures & towers in the USA
  • Includes alarm monitoring & NVG compatibility

POL-21006-SOL Solar powered LED obstruction light

  • FAA L-810 certified
  • Operates automatically year round
  • Various mounting configurations available

POL-21005 LED single obstruction light

  • ICAO low intensity Types A & B and Transport Canada
  • For prominent structures & towers

POL-21005 LED double obstruction light

  • ICAO low intensity Types A & B and Transport Canada
  • For prominent structures & towers

POL-21005-EX Hazardous area Class I, Division 2 obstruction light

  • CID2 LED FAA L-810 & ICAO low intensity Types A & B
  • Hazardous area for refineries, process plant & offshore marine sites

POL-21005-SOL Portable or fixed solar powered LED obstruction light

  • ICAO & Transport Canada certified
  • Operates automatically year round
  • Various mounting configurations available

POL FEATURES

POL-21007

  • The hardware is 316 (A4) stainless steel
  • Only 4.0 watts per head
  • The LED’s are rated for 100,000 hours
  • NVG compatibility is standard
  • Marine Treatment standard for all painted accessories: baseplates & junction boxes
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure & immersion in accordance with UL 746C (f1)
  • Six (6) years limited warranty subject to Point Lighting “Terms & Conditions of Sale”

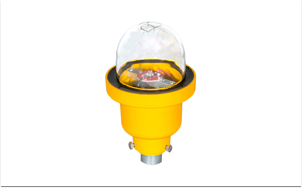

POL-21007 LED single obstruction light

  • Safe area ICAO low intensity Types A & B and FAA

POL-21007 LED double obstruction light

  • Safe area ICAO low intensity Types A & B and FAA

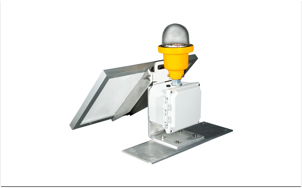

POL-21007-SOL Portable or permanent solar powered LED obstruction light

  • Safe area LED FAA L-810 & ICAO low intensity Types A & B
  • For locations without access to AC power wiring

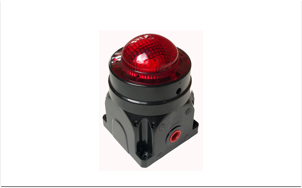

PL11282-1 Hazardous area ATEX-IECEx obstruction light

  • POL-AX zones 1 & 2 ICAO low intensity Types A & B
  • Hazardous area for refineries, process plant & offshore marine sites

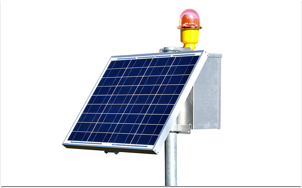

SOL Solar powered LED obstruction lighting system

  • A custom packaged system solution for solar powered obstruction lighting
  • For a location needing a low & medium intensity system

PEL-57005-C055 Multipurpose industrial warning lights

  • Hazardous area or safe area LED steady or flashing
  • Class I, Division 2 for hazardous area industrial sites

POL-21005 Infrared + Visible Red tactical obstruction light

  • Safe area LED FAA L-810 in olive drab marine treatment
  • Separately switched heads for normal & “lights out” conditions

Get In Touch

Point Lighting Corporation personnel will assist customers and their agents in the design of lighting layouts, equipment selection and specifications. In all cases, this represents our interpretation of applicable standards and common practices. No fee is charged for these opinions. Final equipment selection is the responsibility of the end user and to comply with all applicable laws and codes and to ensure proper installation.
