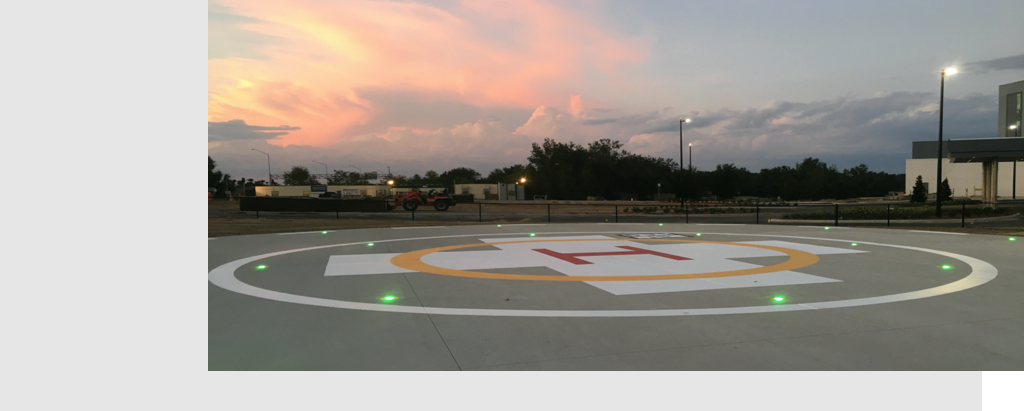

Rollover
Inset Lights

PRL FEATURES

  • The castings are copper-free (< 0.25%) aluminum
  • The hardware is 316 (A4) stainless steel
  • Switchable color option available
  • Variable brightness option available
  • Standard with the exclusive Point Lighting Marine Treatment finish that is bonded to the metal and far exceeds the corrosion resistance of the standard FAA approved finish*
  •  IP66 & IP67 tested and listed
  • NVG compatibility
  • Six (6) years limited warranty subject to Point Lighting “Terms & Conditions of Sale”
  • The LED’s are rated for 100,000 hours
  • The lens is glass

PRL-97004 with PLS or PLB inset mounting base

  • Standard semi-flush LED TLOF and FATO perimeter light
  • Safe area for land-based sites to be recessed in concrete

PRL-97004 with LSM low surface mount base

  • Low surface mount LED helideck perimeter light
  • Safe area for marine offshore helidecks, raised metal heliports or existing concrete pads

PRL-97704-CL with cable loop for metal helideck or for FAA inset mounting base

  • 12-inch diameter semi-flush LED TLOF and FATO perimeter light
  • Safe area for marine offshore helidecks, raised metal heliports or land-based sites in concrete

PRL-97004-SR with seating ring for less than 25 mm height

  • Safe area recessed LED helideck perimeter light
  • Safe area for marine offshore helidecks, raised metal heliports or existing concrete pads

PRL-97004-EX with LSM low surface mount base

  • Class I, Division 2 (Zone 2) low surface mount LED helideck perimeter light
  • Hazardous area for marine offshore helidecks, raised metal heliports or existing concrete pads

PRL-97704-EX for metal helideck or for FAA inset mounting base

  • Class I, Division 2 (Zone 2) semi-flush LED TLOF and FATO perimeter light
  • Hazardous area for marine offshore helidecks, raised metal heliports & land-based sites in concrete

PRL-97004-EX with PLS or PLB inset mounting base

  • Class I, Division 2 (Zone 2) semi-flush LED TLOF and FATO perimeter light
  • Hazardous area for land-based sites to be recessed in concrete

PRL-97004-EX-SR with seating ring for less than 25 mm height

  • Class I, Division 2 (Zone 2) recessed LED helideck perimeter light Hazardous area for marine offshore helidecks, raised metal heliports or existing concrete pads.

PRL-97004-AX with LSM low surface mount base

  • ATEX-IECEx zones 1 & 2 low surface mount LED helideck perimeter light.
  • Hazardous area for marine offshore helidecks, raised metal heliports or existing concrete pads

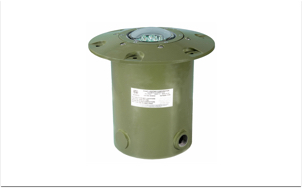

PRL-97704-AX with PLS or PLB inset mounting base

  • ATEX-IECEx zones 1 & 2 semi-flush LED TLOF and FATO perimeter light.
  • Hazardous area for land-based sites to be recessed in concrete
  • PLS or PLB base is required by the certification

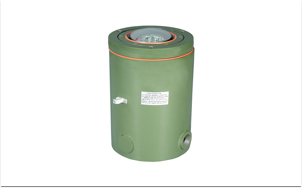

PRL-97004-AX with PLS or PLB inset mounting base

  • ATEX-IECEx zones 1 & 2 semi-flush LED TLOF and FATO perimeter light.
  • Hazardous area for land-based sites to be recessed in concrete
  • PLS or PLB base is required by the certification

PRL-97004-AX-SR with seating ring for less than 25 mm height

  • ATEX-IECEx zones 1 & 2 recessed LED helideck perimeter light Hazardous area for marine offshore helidecks, raised metal heliports or existing concrete pads.

* Marine Treatment
Includes our Marine Treatment finish as standard at no additional charge which tolerates marine, high salt content air and other corrosive environments.

Point Lighting Marine Treatment: Our paint finish is bonded to the metal and far exceeds the corrosion resistance of the standard FAA approved finish. The fixture shall be treated for marine conditions by cleaning per US Department of Defense TT-C-490 method III, pretreated with chrome-free aluminum conversion coating per US MIL-C-5541 type II, epoxy powder base coat primer and glossy polyester powder coat finish. Powder coating per US Department of Defense MIL-PRF-24712A type VI and oven cured.

Get In Touch

Point Lighting Corporation personnel will assist customers and their agents in the design of lighting layouts, equipment selection and specifications. In all cases, this represents our interpretation of applicable standards and common practices. No fee is charged for these opinions. Final equipment selection is the responsibility of the end user and to comply with all applicable laws and codes and to ensure proper installation.
