Solar
Powered

POINT SOLAR POWERED PRODUCTS

The HSOL is a packaged system solution for solar powered lighting for remote heliports where commercial or generator power is not practical and for unattended marine offshore helidecks. Provides reliable, year round solar generated battery power for the aviation lighting. The HSOL system will provide 24V DC power to one lighting circuit which will operate upon activation of the required PRC radio controller.

We have calculated HSOL sizing based on a minimum 1.0 solar insolation at the site which means almost anywhere in the world. The circuit may be switched ON by the pilot for a timed fifteen (15) minute period and this may be repeated at least four (4) such cycles per night* with full recovery of the HSOL system. After each timeout, a new cycle may be initiated by pressing a pushbutton on the door of the control unit or via repeated radio signal from the pilot.

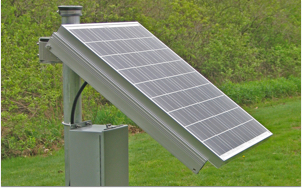

HSOL Heliport & Helideck Solar Powered Lighting System

  • A packaged system solution for solar powered aviation lighting
  • For remote or unattended heliports and helidecks

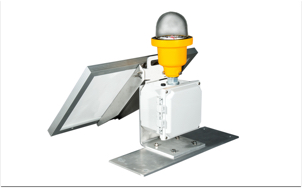

POL-22001-SOL Portable or permanent solar powered LED obstruction light

  • LED FAA L-810 & ICAO low intensity Types A & B
  • For locations without access to AC power wiring

PEL-22001-SOL Portable or permanent solar powered LED perimeter light

  • LED portable solar powered runway or heliport light
  • For locations without access to AC power; will operate all night automatically

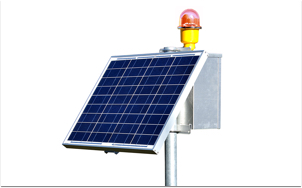

SOL Solar powered LED obstruction lighting system

  • A custom packaged system solution for solar powered obstruction lighting
  • For a location needing a low & medium intensity system

SOL Solar powered LED obstruction lighting system

  • A custom packaged system solution for solar powered obstruction lighting
  • For a location needing multiple low intensity lights on one system

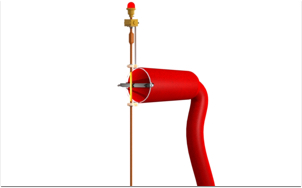

PWC-8061L-1-ON-FF-B-SOL Type 806, Size 1, Solar Powered

  • Frangible Pole, 8-ft (2.5m) by 18-in Windsock*
  • For any heliport or helideck without available AC power

* Also typical for ICAO Sizes 4 & 5

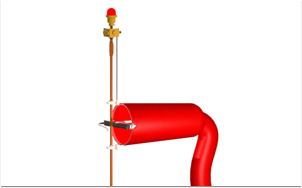

PWC-8071L-1-ON-HBA-B-SOL Type 807, Size 1, Solar Powered

  • Rigid Hinge-Based Pole, 8-ft (2.5m) by 18-in Windsock*
  • For any land-based heliport at ground level without available AC power

* Also typical for ICAO Sizes 4 & 5

Get In Touch

Point Lighting Corporation personnel will assist customers and their agents in the design of lighting layouts, equipment selection and specifications. In all cases, this represents our interpretation of applicable standards and common practices. No fee is charged for these opinions. Final equipment selection is the responsibility of the end user and to comply with all applicable laws and codes and to ensure proper installation.
