Heliport
PEL FEATURES
PEL-57007
- The hardware is 316 (A4) stainless steel
- Only 4.0 watts per head
- The LED’s are rated for 100,000 hours
- NVG compatibility is standard
- The casting & lens are specially engineered forms of polycarbonate materials
- Marine Treatment standard for all painted accessories: baseplates & junction boxes
- Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure & immersion in accordance with UL 746C (f1)
- Six (6) years limited warranty subject to Point Lighting “Terms & Conditions of Sale”
PEL-57005
- The castings are copper-free (< 0.25%) aluminum
- The hardware is 316 (A4) stainless steel
- Extensive mounting options available
- Variable brightness option available
- The lens is glass
- The LED’s are rated for 100,000 hours
- UL 1598A Marine Vessels tested and listed
- NVG compatibility option available
- Standard with the exclusive Point Lighting Marine Treatment finish* that is bonded to the metal and far exceeds the corrosion resistance of the standard FAA approved finish
- Six (6) years limited warranty subject to Point Lighting “Terms & Conditions of Sale”
PEL-57007 with many mounting configurations
- Low height elevated LED FATO perimeter light
- Frangible for land-based sites and raised metal decks
For FAA & ICAO TLOF:
For ICAO FATO:
PEL-57007 extended height with PLS mounting base
- Traditional airport height elevated LED FATO perimeter light
- Safe area for land-based sites
PHL-57007 combination perimeter & surface floodlight
- Standard elevated LED perimeter light with flood wired separately
- Safe area for land-based sites alternated with PEL-57007
PEL-57007 economical basic perimeter light
- Economy series elevated LED FATO perimeter light
- Frangible or rigid for land-based sites and raised metal decks
PEL-57005 with PLS inset mounting base
- Standard elevated LED FATO perimeter light
- Metal & glass construction with Marine Treatment finish
- Safe area for land-based sites

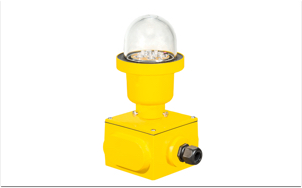

PEL-57005 low profile with various mounting choices
- Low height elevated LED FATO perimeter light
- Metal & glass construction with Marine Treatment finish
- Safe area for land-based sites and raised metal decks
PHL-57005 combination perimeter & surface floodlight
- Standard elevated LED perimeter light with flood wired separately
- Metal & glass construction with Marine Treatment finish
- Safe area for land-based sites alternated with PEL-57005
PEL-57005-EX hazardous area Class I, Division 2 perimeter light
- Low height elevated LED FATO perimeter light
- Hazardous area for land-based sites and offshore marine helidecks
Get In Touch
Point Lighting Corporation personnel will assist customers and their agents in the design of lighting layouts, equipment selection and specifications. In all cases, this represents our interpretation of applicable standards and common practices. No fee is charged for these opinions. Final equipment selection is the responsibility of the end user and to comply with all applicable laws and codes and to ensure proper installation.
